Reporting Tab

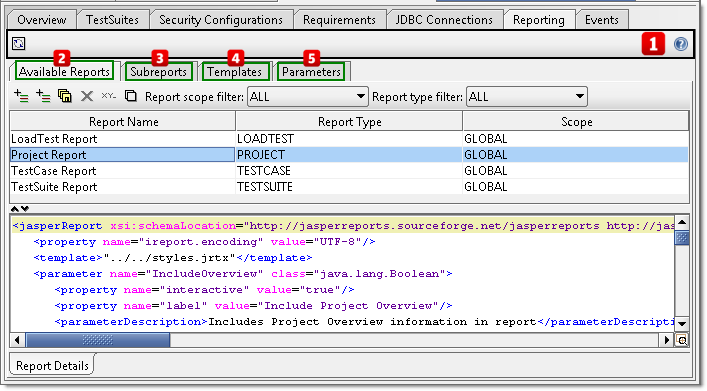

Overview - Reporting tab

Label	Option	Description
	Reload	Reload all global reports and template from the disk
	Available Reports	Contains options for main report templates which correspond to soapUI items
	Subreports	Contains options for subreport datasets that are included in a main report
	Template	Contains XML-template that can be reused in your main and subreport templates
	Parameters	Contains options to add parameters to the report

Available Reports Tab

Label	Option	Description
	Toolbar	Overall control of the Available Reports
	Table	Display each report in table format
	Editor	A report editor

Available Reports Toolbar

Available Reports Toolbar

Option	Description
	Add Report Template	Add report template which can be reused in any main or subreports
	Extend Selected Report Template	Provide customisation by extending selected report template
	Save Report Template	Save report template to your file system
	Delete Report or Template	Delete report template from your file system
	Rename Report Template	Rename report template in your file system
	Clone Report Template	Clone report template in yoru file system
	Report Scope Filter
	Report Type Filter

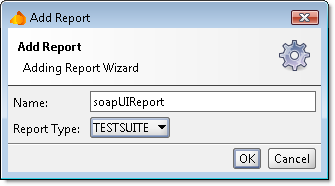

Add Report Template Action

Adding Report options

Option	Description
Name	Name of the report
Report Type	Type of the report

Choose subreports options

Option	Description
SubReports	Select from a list of subreports
Create Project-level Subreport	Add chosen subreports to project

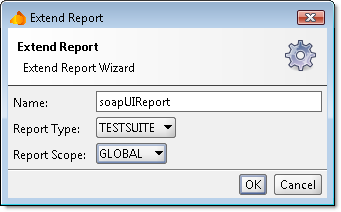

Extend Report Action

Option	Description
Extend Report
Choose subreports

Extend Report Options

Option	Description
Name	Name of the report
Report Type	Type of the report
Report Scope	Scope of the report

Choose subreports options

Option	Description
Subreport	Select from a list of subreports
Create Project-Level Subreport	Add chosen subreports to project

Available Reports Table

Option	Description
Report Name	Name of the report
Report Type	Type of report
Scope	Scope of report

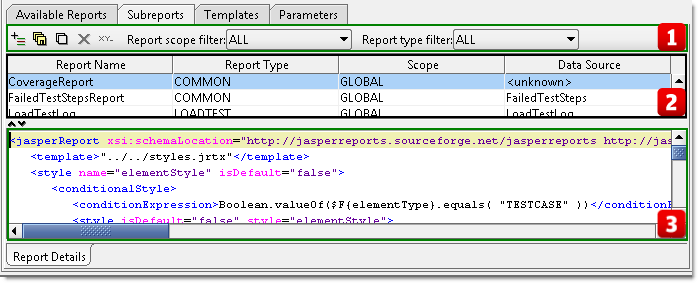

Subreports Tab

	Option	Description
	Subreports Toolbar	Overall control of the subreports
	Subreports Table	Display data of subreports in table format
	Subreports Editor	A subreport editor

Subreports Toolbar

Subreports Toolbar Buttons

	Option	Description
	Add SubReport	Add a subreport template
	Save Report Template	Save a subreport template to your file system
	Clone SubReport Template	Clone a subreport template in your file system
	Delete Report or Template	Delate a subreport template in your file system
	Rename Report Template	Rename a subreport template in your file system
	Report Scope Filter
	Report Type Filter

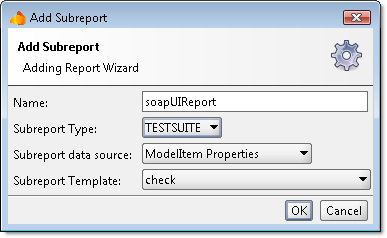

Add Subreport Action

Add subreport option

Option	Description
Name	Name of subreport
Subreport Type	Type of subreport
Subreport data source	Data source of the subreport
Subreport Template	XML template of the subreport

Subreport table

Option	Description
Report Name	Name of subreport
Report Type	Type of subreport
Scope	Scope of subreport
Data source	Data source of subreport

Subreport Editor

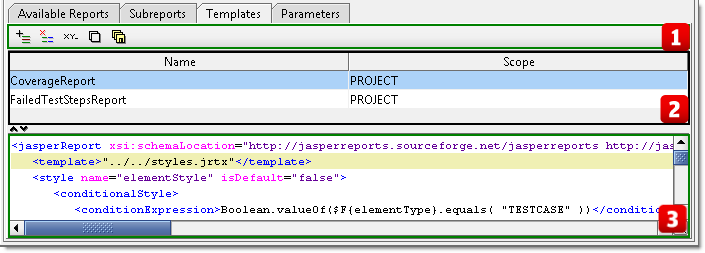

Report Templates Tab

	Option	Description
	Toolbar	Provide overall controll of Template tab
	Table	Discplay data in table format
	Editor	XML editor

Report Template Toolbar

Report Template Toolbar Button

	Description
	Add XML Template
	Removes selected template from the template list
	Rename Report Template
	Clone Report Template
	Save XmlReport Template

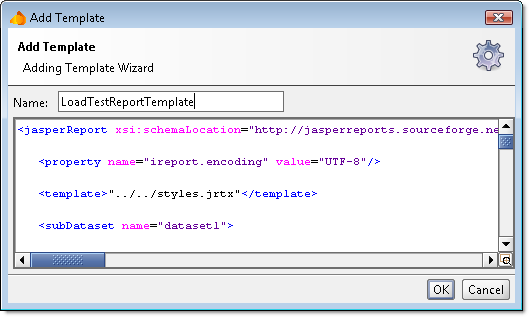

Add Template Action

Option	Description
Add Template	Add XML template
Report Template

Add Template options

Option	Description
Name	Name of the template
Report Template Editor	An XML Editor

Report Templates Table

Report Templates Table

Column Name	Description	Read-Only
Name	Name of the report template
Scope	Scope of the report template

Report Template Editor

Report Parameters Tab

	Option	Description
	Toolbar	Provide overall control for report parameters tab
	Table	Display result in a data format

Report Parameters Toolbar

Icon	Description
	Adds a property to a property list
	Remove selected property from the property list
	Move Selected Property up one row
	Move Selected Property down one row
	Sort Properties Alphabetically
	Clears all current property values
	Loads property values from an external file
	Save current property value to a file
